Raytools BM114S Auto Focus Laser Cutting Head Power Rating 3.3KW
BM114S 6KW auto-focusing laser cutting head user manual.pdf
Laser power rating 6KW; Standard auto focus laser cutting head.
Raytools BM114 Main Features:
Rated to 6kW @ 1um, with D37 lens combo for thick plate cutting.
Collimation and focusing lenses are both water cooled.
Compact design to reduce the payload of Z axis.
Air cooling to nozzle which effectively protects the nozzle & ceramic part and extends the lifespan.
35mm Clear aperture which effectively reduces stray beam interference and guarantee cutting quality and lifespan.
Auto focus to reduce human intervention.

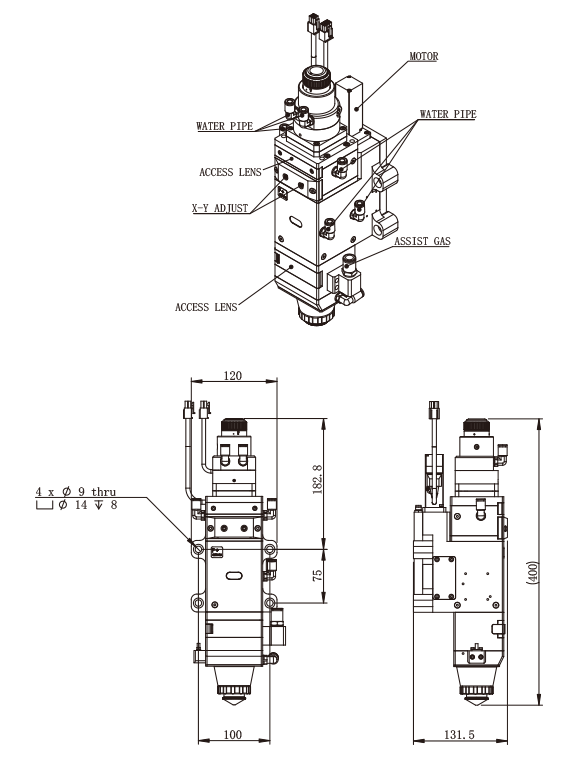

Raytools BM114S auto focus head conneting data:
Raytools BM114S Technical Data:
| Fiber Interface: | QBH , QD | Collimation Length: | 100mm |
| Clear Aperture: | 35mm | Focus Length: | 150mm, 200mm |
| Auto Focus data |
| Nozzle Styles: | Single , Double , Custom |
| -Range: | +15 ~ -20mm | Diameter of Nozzle Tip: | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, |
| -Acceleration: | ≤ 10m/s² |
| 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| -Velocity: | ≤ 10m/min | Assist Gas Pressure: | ≤ 30 bar |
| -Accuracy: | ≤ 50μm | Weight: | ~ 5.6 kg |
| Cover Glasses Data |
|
|
|
| - Collimation Side (Top) | Φ38.1*1.6mm |
|
|
| - Focusing Side (Bottom/Middle) | Φ37*7mm |
|
|
Raytools BM114S auto focus laser cutting head is composed of standard accessories as shown below:
