Laser Welding Process Parameter - Shielding Gas
In laser welding processes, shielding gas plays a crucial role in protecting the weld area from atmospheric contaminants and oxidation. Here are key considerations regarding shielding gas in laser welding:
Purpose: The primary function of shielding gas is to create a protective atmosphere around the weld zone. This prevents oxidation and contamination of the molten metal during the welding process, ensuring high-quality welds.
Gas Selection: The choice of shielding gas depends on factors such as the material being welded, the welding process (continuous wave or pulsed), and the desired weld properties. Common shielding gases include argon, helium, nitrogen, and mixtures thereof. Each gas has specific properties that affect weld bead formation and quality.
Flow Rate: The flow rate of shielding gas is critical for maintaining an adequate protective atmosphere around the weld area. The flow rate should be sufficient to displace air and other contaminants effectively without causing turbulence that could disrupt the welding process.
Gas Distribution: Proper distribution of shielding gas is essential to ensure uniform protection across the entire weld zone. This is particularly important in laser welding, where the high energy density of the laser beam can quickly vaporize and displace shielding gas if not properly controlled.
Effect on Weld Quality: Effective shielding gas helps minimize porosity, oxidation, and other defects in the weld bead. It also influences the bead shape, penetration depth, and overall weld appearance.
Gas Interaction with Laser Beam: The interaction between the laser beam and shielding gas can affect the efficiency of the welding process. For example, certain gases may enhance plasma formation, which can affect energy absorption and penetration characteristics.
In summary, selecting the appropriate shielding gas and optimizing its parameters are crucial for achieving high-quality laser welds. This involves considering the specific requirements of the welding application and adjusting the shielding gas setup accordingly to ensure optimal weld performance and integrity.
Definition of Shielding Gas:
The need for shielding gas in laser welding arises because the high-energy laser beam rapidly melts materials, creating a molten pool with keyhole formation. In this molten state, the metal is highly reactive and prone to oxidation when exposed to oxygen in the atmosphere. This oxidation reaction can be intense, leading to significant spattering, porosity, and slag formation — akin to a fireworks display.

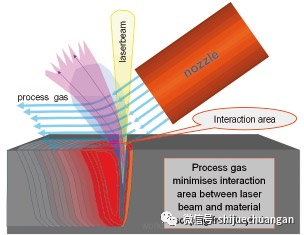

Therefore, the role of shielding gas is to create a protective barrier around the weld pool, isolating it from atmospheric oxygen. Shielding gas is jetted around the perimeter of the molten pool to establish a flowing inert gas environment. This inert gas environment prevents direct contact between the molten metal and oxygen, thereby minimizing oxidation reactions.
Another function of shielding gas in laser welding is to disperse plasma. High-energy lasers ionize the metal, creating a mist-like plasma above the weld pool. This plasma can shield the laser energy from directly reaching the molten pool, resulting in some energy loss as the laser passes through the plasma.
There are primarily three types of shielding gases used: argon, helium, and nitrogen. The selection depends on the type of workpiece being welded. In high-end industries like medical and laboratory applications where precision is crucial, argon is often preferred for its effectiveness. In contrast, nitrogen is chosen in industrial production lines for economic reasons.
Key considerations for shielding gas include flow rate, direction (direct or lateral blowing), and distance from the nozzle to the weld pool. Generally, direct blowing provides more uniform coverage of the weld pool, but in some cases, lateral blowing is considered to suppress spattering and reduce weld bead size. The angle and distance of lateral blowing are critical, especially for thin sheets, nickel-based alloys, copper, and other sensitive materials, where improper gas flow can lead to cracking due to uneven heat distribution.
Experience and experimentation are essential in optimizing these parameters to achieve high-quality welds without defects.

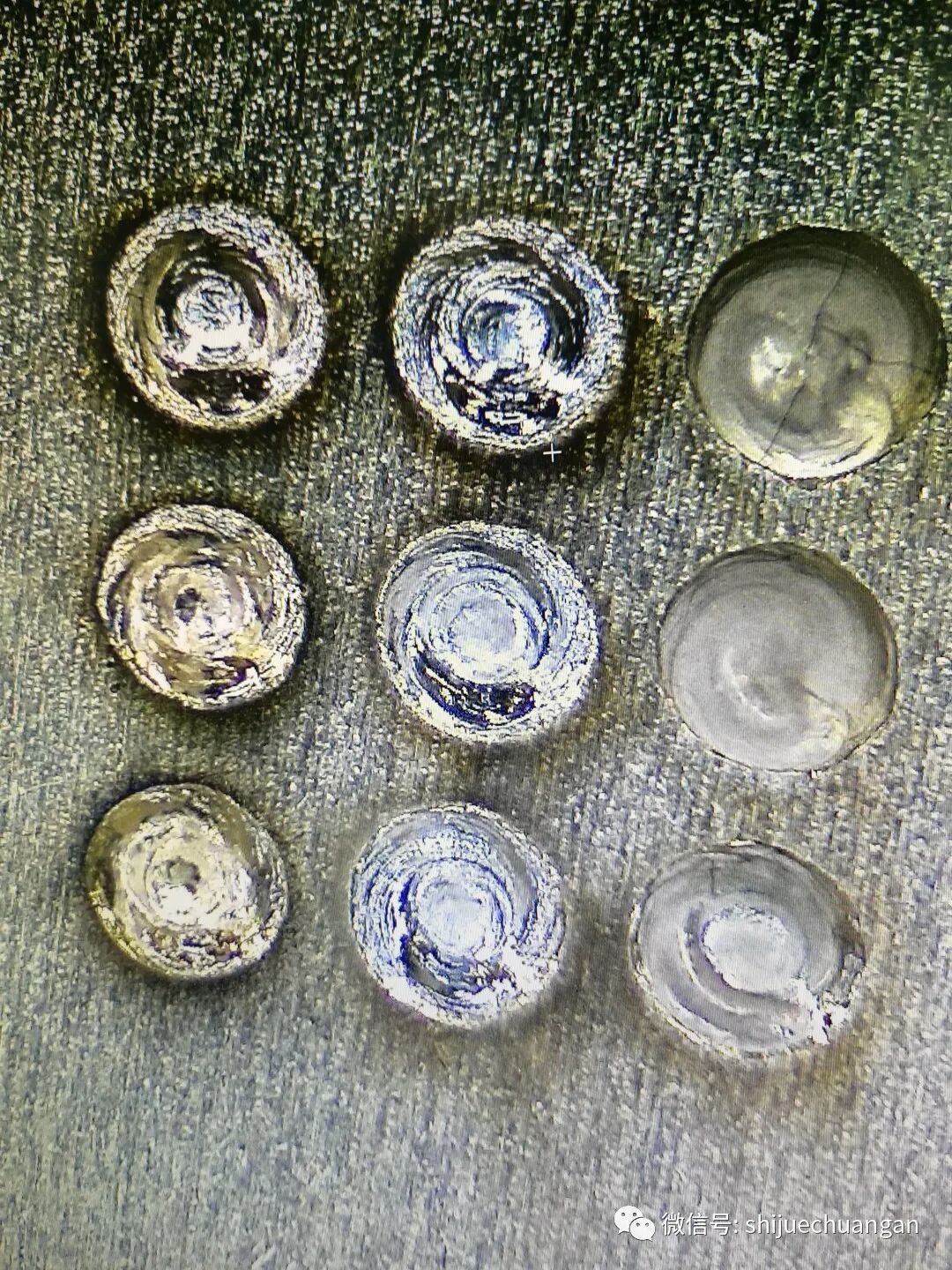

Side blowing shielding gas in pulse welding can significantly impact the welding effectiveness at different distances. The direction and distance play crucial roles in determining the quality of the weld.
Effect of Direction: Side blowing shielding gas is directed perpendicular to the welding direction. This method helps in shielding the weld pool effectively from atmospheric contamination and oxidation. The direction ensures that the gas flow covers the weld pool uniformly, which is particularly beneficial in reducing spatter and improving weld quality.
Impact of Distance: The distance between the gas nozzle and the weld pool is critical in pulse welding. A shorter distance allows the shielding gas to reach the weld pool quickly and create a protective atmosphere. This helps in minimizing oxidation and ensuring cleaner welds. On the other hand, if the distance is too short, it can lead to excessive gas turbulence and affect the stability of the weld pool.
Optimizing Welding Parameters: Finding the right balance between the direction and distance of side blowing shielding gas is essential for achieving optimal welding results. For different materials and welding configurations, adjustments may be necessary to control heat distribution, prevent defects like cracking or spattering, and ensure consistent weld quality.
In conclusion, the direction and distance of side blowing shielding gas significantly influence the effectiveness of pulse welding. Proper adjustment of these parameters is crucial for achieving high-quality welds with minimal defects.

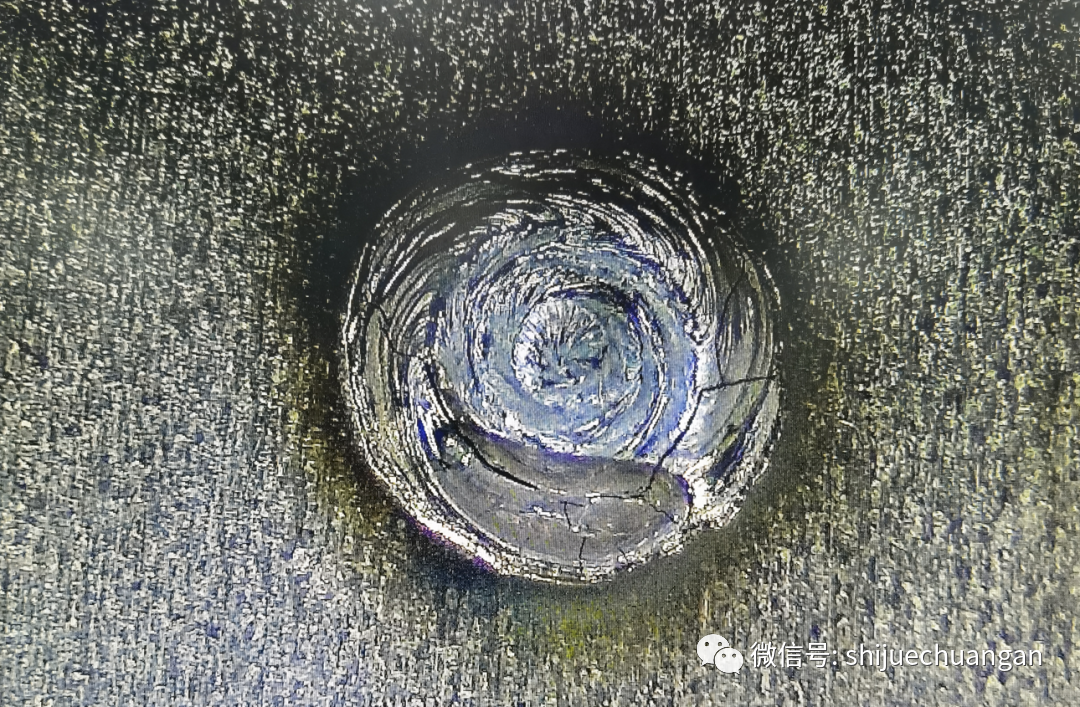

Improper shielding gas flow rate and angle selection can directly result in uneven heat dissipation, leading to weld cracking.
During welding, the flow rate and angle of the shielding gas significantly impact weld quality. Here are key considerations:
Flow Rate:
Excessive flow rate can cause turbulent mixing of the weld pool, leading to uneven heat distribution and increased material stress and potential cracking.
Insufficient flow rate may not adequately shield the weld pool from atmospheric oxygen, resulting in oxidation and spattering.
Angle:
The angle at which shielding gas is directed affects its uniformity and effectiveness in covering the weld pool. Correct angle ensures even coverage, effectively preventing oxidation and surface defects.
Incorrect angle can lead to inadequate shielding, creating uneven gas coverage over the weld pool surface and affecting heat distribution and stability.

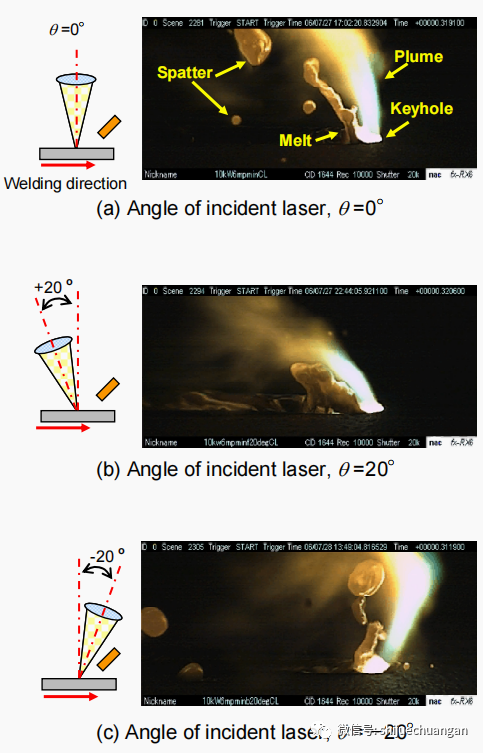

Splatter Suppression:
Generally, directing shielding gas from the opposite direction of welding can effectively suppress spattering. This method helps direct molten metal towards the center of the weld seam, reducing spatter formation.
Proper adjustment of shielding gas angle and flow rate minimizes spattering during welding, improving weld quality.
Therefore, selecting appropriate shielding gas flow rate and angle is crucial in laser welding. Optimizing these parameters helps maintain weld pool stability, reducing the likelihood of defects and ensuring high weld quality.

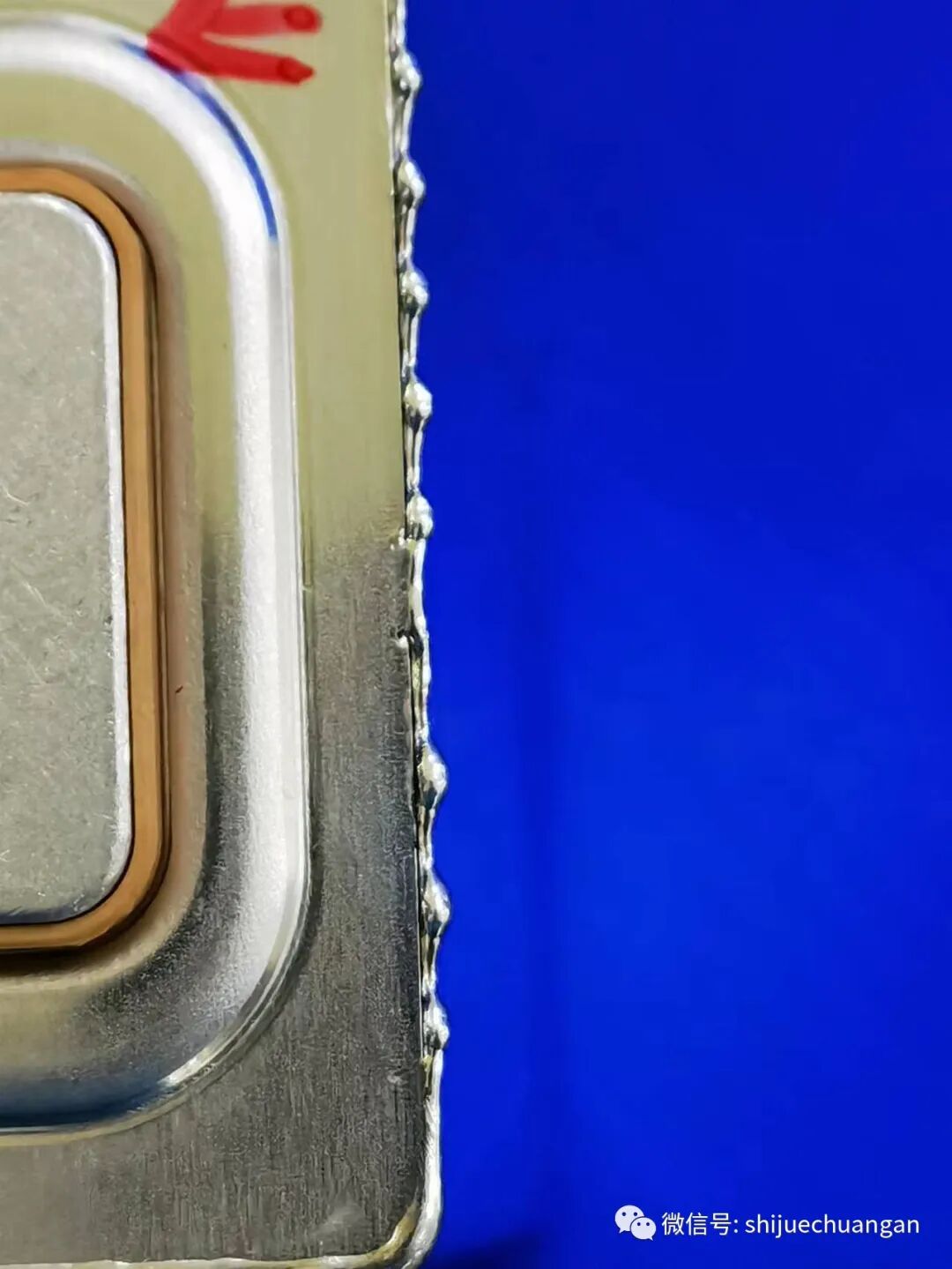

Improper selection of shielding gas flow rate can lead to various defects, primarily including spatter, surface roughness, waviness, fish scales, and spatters. Taking the example of welding lithium battery top covers made of aluminum alloy, the use of coaxial direct blowing for shielding gas directly affects the stability of the weld pool keyhole. This can be observed visually with the help of depth of fusion monitoring equipment.
Appropriate shielding gas flow rate can stabilize keyhole fluctuations, reduce defects such as spatter, and improve yield.
Proper shielding gas ensures smoother and more stable fluctuations in the weld pool keyhole.
Improper shielding gas flow rate can exacerbate fluctuations in the keyhole during welding, leading to increased spattering and porosity.

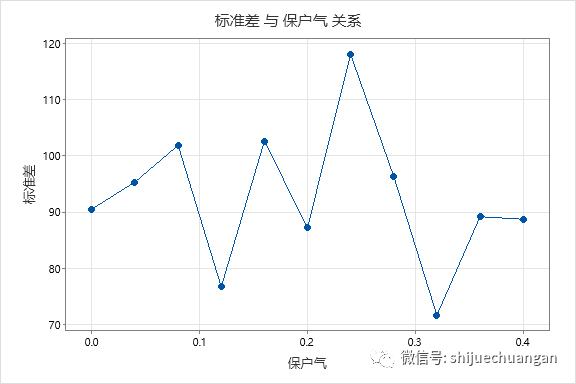

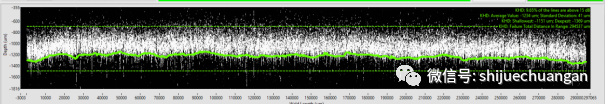

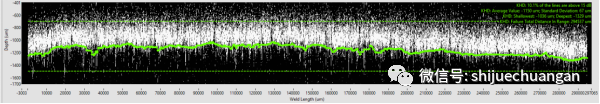

The depth of fusion data obtained from monitoring can be used to measure the fluctuation level of the keyhole depth using standard deviation. A higher standard deviation indicates greater instability of the keyhole, which correlates with increased likelihood of spattering, pitting, and spatter formation. It is evident that proper shielding gas can effectively suppress keyhole fluctuations and enhance the stability of laser welding.
