Laser Welding Process - Standoff Distance
In laser welding processes, the standoff distance is a critical parameter. Standoff distance refers to the distance between the welding head (or laser focal point) and the surface of the workpiece. It is typically defined as the focal length of the laser optics to the workpiece surface. This distance plays a significant role in shaping the welding process and directly affects several key aspects:
Energy Density Distribution: The standoff distance determines how the laser energy is distributed on the workpiece surface. A shorter standoff distance increases the energy density, potentially leading to deeper penetration but also increasing the risk of overheating or burn-through. A longer standoff distance reduces energy density, affecting weld penetration and bead profile.
Weld Pool Dynamics: Proper selection of standoff distance influences the formation and stability of the weld pool. It affects the size, shape, and fluidity of the molten pool during welding, crucial for achieving desired weld characteristics.
Welding Speed and Quality: Standoff distance is closely tied to welding speed. Optimal standoff distance allows for higher welding speeds while maintaining adequate weld quality. It is essential to balance standoff distance with other parameters to achieve consistent and reliable welds.
Material Compatibility: Different materials and their surface conditions require adjustments in standoff distance to optimize the welding process. Factors such as material reflectivity, thickness, and thermal conductivity influence the choice of standoff distance.
Optical System Design: The selection of standoff distance is influenced by the design of the laser optics and focusing system. The optical setup, including focal length and beam delivery, affects the precision and efficiency of the welding process.
In summary, selecting the appropriate standoff distance is crucial for optimizing laser welding parameters. It involves balancing energy density, weld pool dynamics, welding speed, and material compatibility to achieve desired weld quality and efficiency in industrial applications.

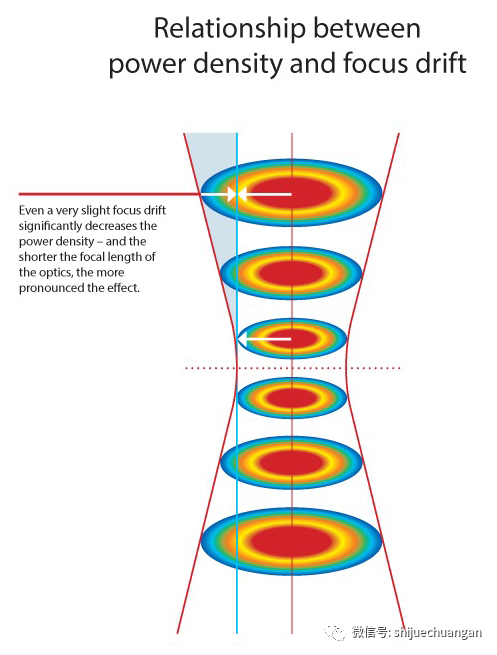

The impact of standoff distance on weld seam processes is primarily related to energy distribution. In laser welding, a common energy distribution pattern is symmetric about the focal point, where the laser spot is smallest and energy density is highest at the focal point. As the standoff distance increases, the laser energy becomes more dispersed, and the spot size increases.
Energy Distribution: Standoff distance affects how laser energy is distributed onto the workpiece surface. A shorter standoff distance concentrates laser energy into a smaller spot, increasing energy density and potentially enhancing penetration depth. Conversely, a longer standoff distance spreads out the laser energy, reducing energy density and affecting the heat input into the weld.
Focal Point Characteristics: At the focal point, the laser spot is at its minimum size and highest energy density. This precise focusing is crucial for achieving optimal weld characteristics such as depth and width.
Spot Size and Energy Density: Increasing standoff distance results in a larger laser spot size on the workpiece surface. This larger spot size reduces the energy density per unit area, influencing weld penetration and width.
In practical applications, the selection of standoff distance involves balancing these factors to achieve the desired welding outcomes. Experimentation and adjustment are often necessary to optimize standoff distance along with other parameters like laser power, welding speed, and material properties to ensure consistent and high-quality welds.

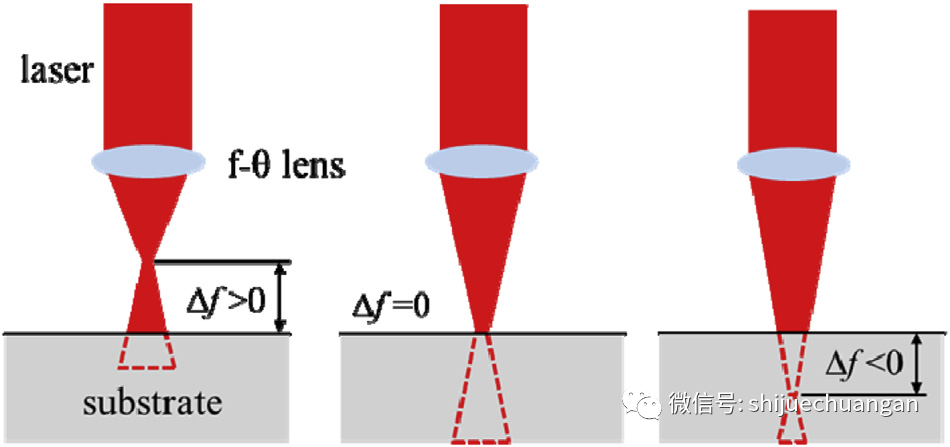

Positive Standoff: The focal point is above the workpiece surface.
Negative Standoff: The focal point is inside the workpiece, below the welding surface.
When defining a process window, it's essential to establish upper and lower limits for standoff distance, particularly for surfaces with high reflectivity such as stainless steel and aluminum alloys. These materials have mirror-like surfaces, and excessive standoff distance with low energy density can fail to quickly melt the material surface, potentially damaging the welding optics and fiber end due to laser energy reflection. Moreover, after selecting the fiber core diameter, if there's a large gap between workpieces, laser leakage may occur during welding. Standoff distance can then be used as a remedy to enlarge the laser spot, increase the heated area, and ensure full coverage of the weld seam to prevent light leakage.
Positive standoff distance is typically preferred over positioning the focal point or using negative standoff because laser energy primarily concentrates at the center of the focal spot. Placing the focal point on or inside the workpiece increases the laser power density inside the weld pool, which can lead to issues like welding spatter, rough weld surfaces, and unevenness.
Standoff Distance and Weld Penetration/Width Relationship

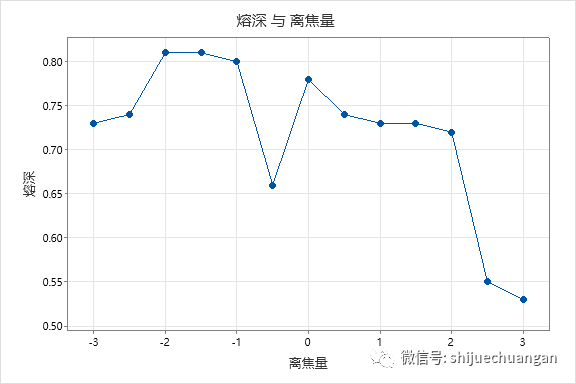

The relationship between standoff distance and weld penetration/width can be adjusted flexibly, as depicted in the diagram. Generally, for the same standoff distance, weld penetration is typically greater with negative standoff compared to positive standoff. This is because with negative standoff, where the focal point is inside the workpiece, the material absorbs more energy.
Negative Standoff:
The focal point inside the workpiece allows for more efficient and concentrated energy transfer within the weld area, resulting in deeper and wider weld penetration.
Positive Standoff:
The focal point above the workpiece surface causes some energy loss and scattering as it penetrates through the material, resulting in relatively shallower weld penetration and width.
In practical applications, engineers can adjust the standoff distance based on specific welding requirements and workpiece characteristics to achieve optimal welding results and quality.

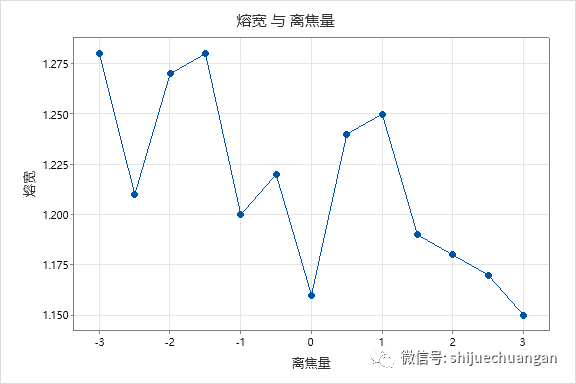

From a cross-sectional profile perspective, the pattern observed is as follows: as the standoff distance increases, the weld penetration depth gradually decreases, while the weld width initially increases and then decreases.
This trend can be explained by the following factors:
Weld Penetration Depth: Increasing the standoff distance results in a reduction of the laser energy density at the focal point on the workpiece surface. As a result, the depth to which the material melts decreases because there is less energy concentrated at the focal point.
Weld Width: Initially, as the standoff distance increases, the laser spot size on the workpiece surface becomes larger. This larger spot size can lead to a wider molten pool and hence an increased weld width. However, if the standoff distance becomes too large, the energy density decreases, which may reduce the width of the molten pool and thus decrease the overall weld width.
In summary, adjusting the standoff distance in laser welding affects both the depth of penetration and the width of the weld bead. Finding the optimal standoff distance involves balancing these effects to achieve the desired weld profile and quality for specific welding applications.
