PoLeader2.0S
PORAD
PORAD PoLeader2.0S Operating Instructions for the Ultra High Power Series Products fiber cutting head for fiber laser cutting machine
PORAD PoLeader2.0S Operating Instructions for the Ultra High Power Series Products.pptx
I: Overview
The PoLeader2.0S is an ultra high power smart focus, fiber cutting head introduced by PORAD in 2020.With QBH,Q + and QD, the PoLeader2.0S with the highest power of 30KW will bring a higher quality and faster cutting experience to the laser processing industry. The new design of cooling mode can bring more efficient cooling effect to the optical lens, to ensure the stability of batch cutting; the new design of focus protection replacement mode, to solve the trouble of field replacement focus protection and the risk of ash fall.
1.1: Technical parameters
Applicable optical fiber power: ≤ 30KW
Focus mirror focal distance: 200mm
Focus adjustment range: + 15mm ~ -30mm
Control mode: analog quantity control
Upper protection mirror specification: ø21.5mm*2mm
Lower protection mirror specification: ø37mm*7mm
Auxiliary gas air pressure: ≤ 2.5MPa
Weight: 6.5~7.0KG
1.2. Product Advantages:
●'s new focus protection replacement method provides great convenience for the replacement of the focus protection lens and effectively reduces the risk of ash fall.
● Fast Cool cooling technology can effectively cool the cutting nozzle and cut the sheet surface, solving the problem of poor cutting quality due to high temperature.
●'s new body water cooling way, more efficient cooling optical lenses; ensure the stability of plate cutting.
The ● can read the monitoring data from the mobile terminal via a wireless network.
● designed a new and effective cutting air road, solved the problem of cutting direction due to the influence of air road during plate cutting, and ensured the consistency of all direction effects of the finished product.

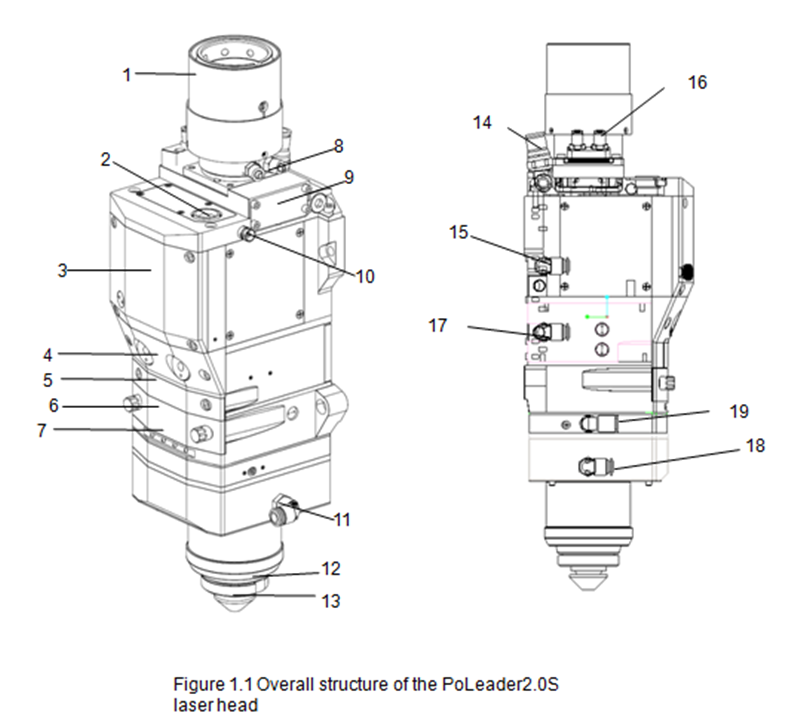

1.3: Overall structure of the laser head
The company that purchased the 20000W laser cutting machine highly praised it: it has been used stably for half a year, and the equipment has been working 24 hours a day since its installation, which is more than 3 times faster than 12000W. Especially when cutting 20, 25, and 30mm carbon steel plates, the efficiency is higher than 12KW 50%-60%, the maximum efficiency can be increased to 70%. Efficient and accurate, greatly increase the output, reduce the operating cost, and greatly improve the processing efficiency.
performance advantage.
Automatic lubrication system:
The automatic lubrication system regularly and quantitatively provides lubricating oil to the equipment to ensure the high-speed operation of the equipment, and has the functions of abnormal alarm and liquid level alarm. The system greatly improves the cutting accuracy and effectively prolongs the service life of the transmission mechanism.
Intelligent alarm system:
Intelligent stroke protection, automatic monitoring of the working range of components, installation of international machine tool standard limit springs, built-in laser cutting head capacitance height adjustment function, anti-collision shutdown, improve equipment safety performance and life safety protection, reduce accidents, and improve cutting efficiency.
Security system:
It has an automatic alarm function for abnormal equipment working status, and pushes it to the operation interface through the control center, which improves the efficiency of equipment abnormal troubleshooting, reduces potential safety hazards, and reduces maintenance costs.
