RFL-P200S
Raycus
Raycus MOPA Fiber Laser Sources RFL-P200S for surface cleaning fine marking

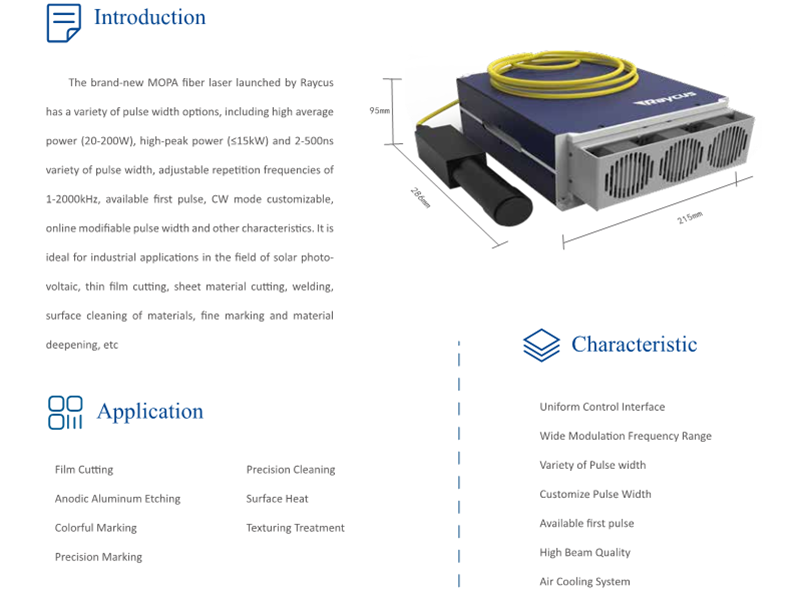

The MOPA pulsed fiber laser launched by Raycus has high average power, high peak power, various pulse widths from 2-500ns, and adjustable repetition frequency of 1-2000kHz. The first pulse can be used, the continuous mode can be selected, and the pulse width can be selected. It is an ideal choice for industrial applications such as solar photovoltaic field, thin film cutting, sheet material cutting, welding, material surface cleaning, fine marking, and material deep drilling.
Features:
Common Control Interface
Very wide operating frequency range
Various pulse widths are available
Pulse width can be modified online
first pulse available
High beam quality
Air-cooled design

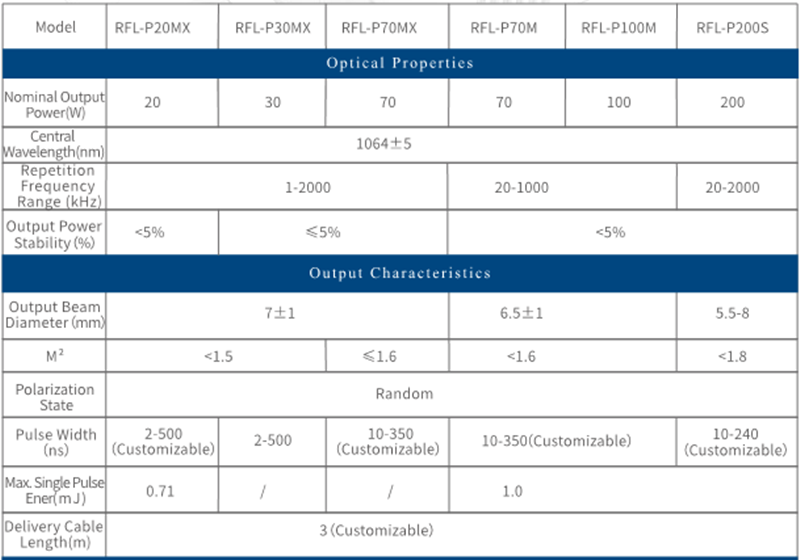

Optical characteristics:
Rated output power: (W): 200
Center wavelength: (nm): 1064±5
Repetition frequency range (kHz): 20-2000
Output power stability: <5%
Output characteristics:
Output spot diameter (mm): 5.5-8
M²: <1.8
Pulse width (ns): 10-240 (can be customized)
Maximum single pulse energy (mJ): 1
Polarization State: Random
Output fiber length (m): 3 (can be customized)

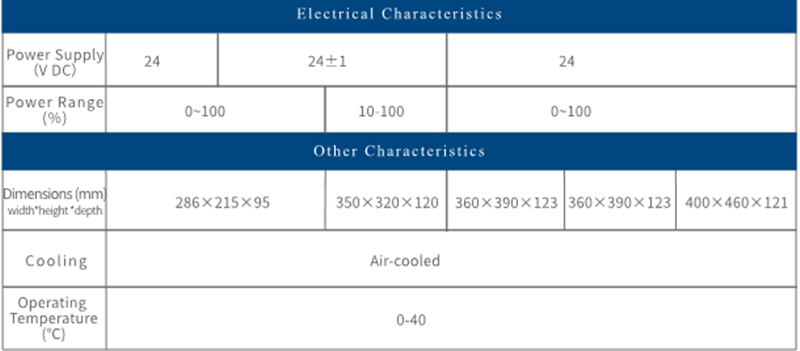

Electronic control characteristics:
Input Power (VDC): 24
Power adjustment range ( % ): 0-100
Other features:
Dimensions (mm) W*H*D: 400×460×121
Cooling method: air cooling
Operating temperature ( ℃ ): 0 - 40
Application of RFL-P200MX:
Film cutting
Anodized aluminum black
color markers
Oxygenation, hair treatment
fine marking
Precision cleaning
Solar, photovoltaic scribing
