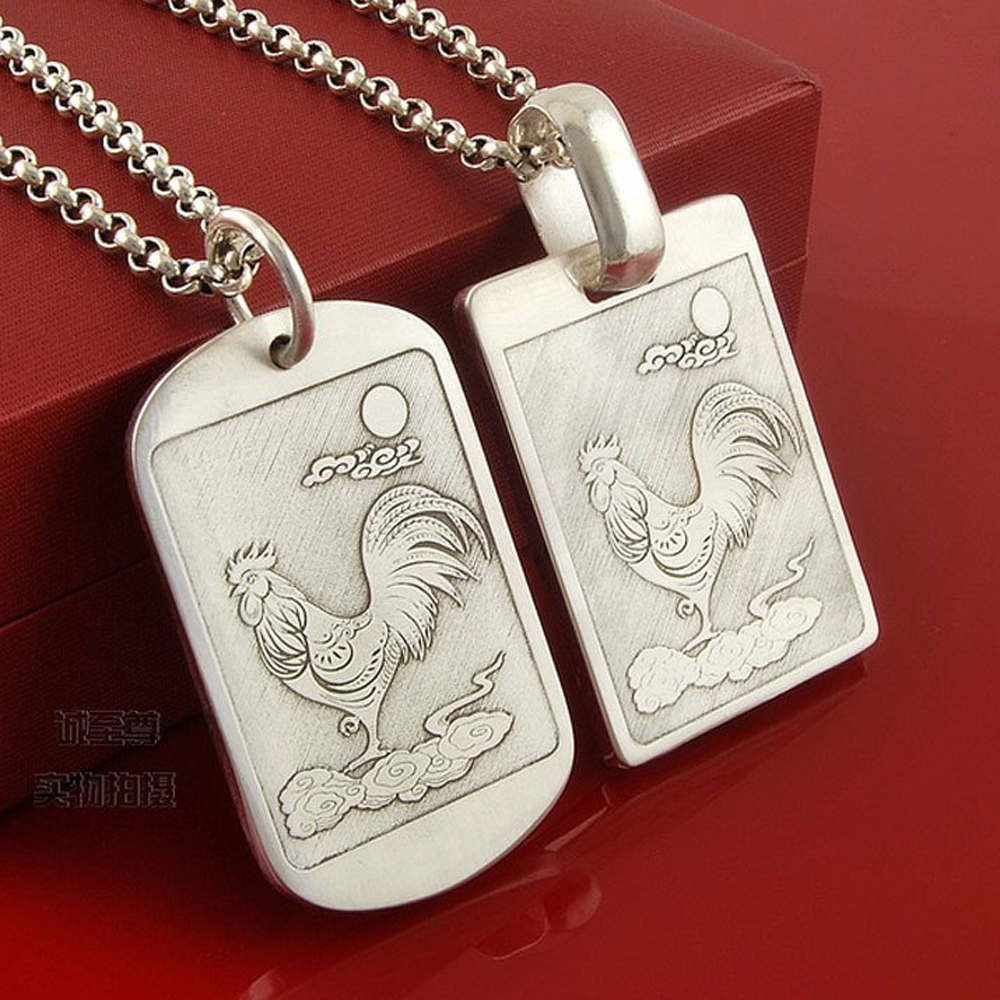

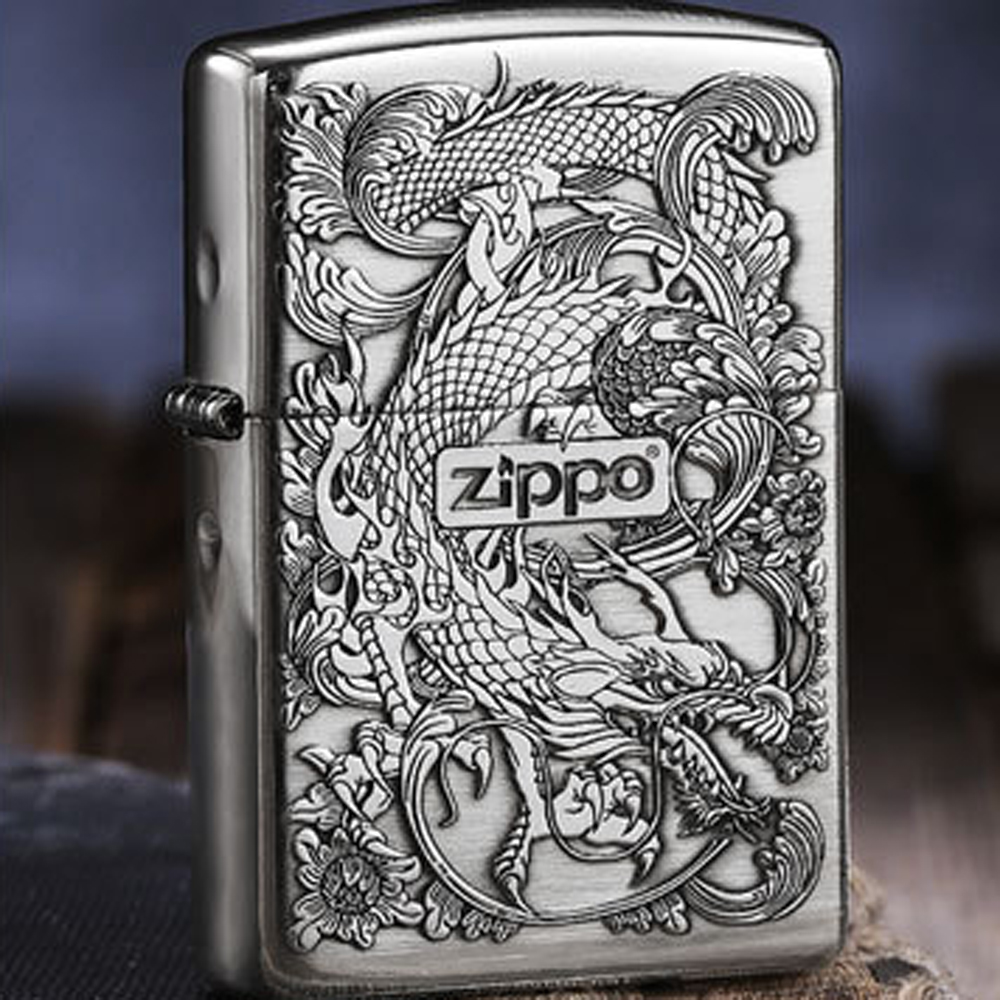

laser marking controller DLC2-M4 board with EZCAD3 software for 2.5D laser marking 3D relief projects
Product Description:
Laser and Galvo Controller Board for 2D and 3D Laser Marking and Other Applications with Galvo
DLC2 series is the new generation of laser controller developed by JCZ, which works with EZCAD3 software. It can control most of the fiber laser in the market directly and other types of laser sources such as CO2, UV, Green, Picosecond and Femtosecond can also be controlled via a small interface board.
It is also compatible with the 2 axis and 3D axis laser galvo scanner with both XY2-100 and SL2-100 (A small interface board needed) protocols.
It will replace the LMC controller, which works with EZCAD2 software, and become one of the most-used controllers for laser marking, welding, cutting, and other types of laser processing with galvo scanner.
DLC2 (DSP Laser Control Electronics-2) instruction manual
The DLC2 control board and EZCAD3 software can perform real-time synchronous control of 2D/3D scanning galvanometer and laser. The main features of the board are as follows:
1. Support enhanced version of the XY2-100 data protocol (X, Y, Z triaxial galvanometer)
2. Supports fiber, CO2, QCW, SPI, UV, YAG and other lasers through the laser expansion card
3. Support 10 input and 8 output ports
4. 12V power supply, minimum current requirement 3A
5. Support flight marking function
6. Support offline marking function
7. Support 16Bit/18Bit galvanometer, which can be customized according to the actual galvanometer protocol
Controller | DLC2-M4-2D | DLC2-M4-3D |
Communication | USB2.0 | |
compatible Laser | standard: Fiber Interface board for other types of laser DLC-FIBER-E: IPG TypeE Laser DLC-SPI: SPI Laser DLC-STD: CO2, UV, Green Laser... DLC-QCW5V: CW or QCW Laser requires 5V control signal. DLC-QCW24V: CW or QCW Laser requires 24V control signal. Note: Lasers with some brands or models may need special signals, a manual is needed to confirm the right controller. | |
Compalitable Galvo | 2 axis galvo | 2 axis and 3 axis Galvo |
Standard: XY2-100 Protacal Optional: SL2-100 Protacal,16 bit,18 bits and 20 bits galvo. | ||
Extending Axis | Standard: 4 axis Control (Pul/Dir Signals) | |
I/O | 10 TTL Inputs, 8 TTL/OC Outputs | |
LaserErr signal | Yes | |
Remark Signal | Yes | |
Encoder Signals | One | |
Power Supply | 12V 3A | |
Dimension | 130mm*133mm |
