ospri Intelligent Autofocus Cutting Head LC1508 for 15000W laser cutting machine

Auto focus Cutting Head


Availability:
Quantity:
Inquire Add to Basket

  • LC1508

  • Ospri

Product Description
Intelligent Autofocus Cutting Head

Intelligent Autofocus Cutting Head

LC1508

Laser Power

15000W

  • High speed of auto focusing by collimation with servo motor.

  • Dust-proof design with three protection windows.

  • Suits for QBH, QD connector

  • Modular catridge of focus protection widnow is convenient for maintenance.

  • Optics temperature monitor, air leakage monitor and protection window in place monitor.


Product parameters:


Focus Length 200mm
Collimation Length 100mm
Focusing Range -25mm~+20mm
Focusing Speed 400mm/s
Auxiliary Gas ≤3Mpa
Weight 7.5KG

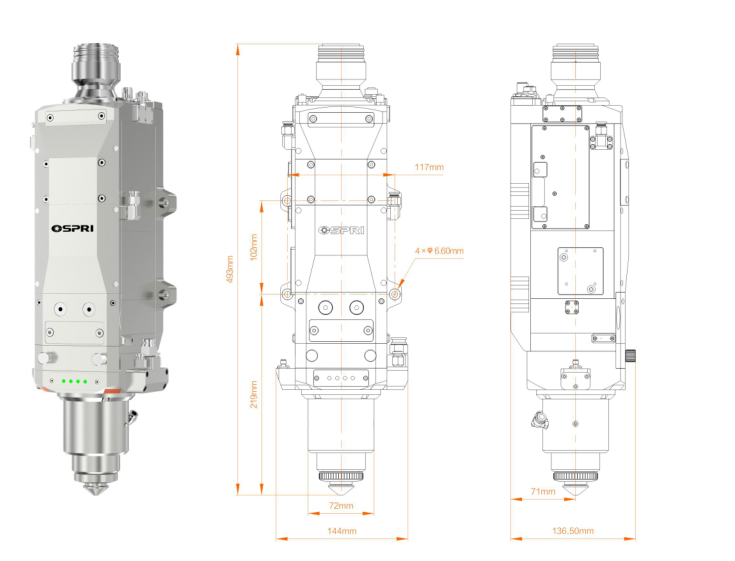

Intelligent Autofocus Cutting Head LC1508
