X series high-speed scanning galvanometer
X series high-speed scanning galvanometers can carry 20mm~30mm spot reflective lenses, and the maximum incident spot diameter is 20mm~30mm. It is mainly used in small and medium power laser welding, cutting, laser drilling and other fields. The optical scanning system has the characteristics of low drift, high positioning accuracy, reliable and stable operation, and its comprehensive performance has reached the domestic leading level. It is mainly suitable for high-speed and online flying marking of optical fiber, YAG and CO2 lasers. This 2D scanning galvanometer can choose lenses with different wavelengths and different power levels, and supports XY2-100 international general protocol and SPI protocol.
Product Features:
High positioning accuracy and fast response speed
High linearity, small temperature drift
Industrial product modeling design, LOGO can be customized, the product is more beautiful.
Application areas:
Laser drilling, laser precision cutting\welding, medium and small power fiber laser welding, high power CO2 marking\cutting and other industries.

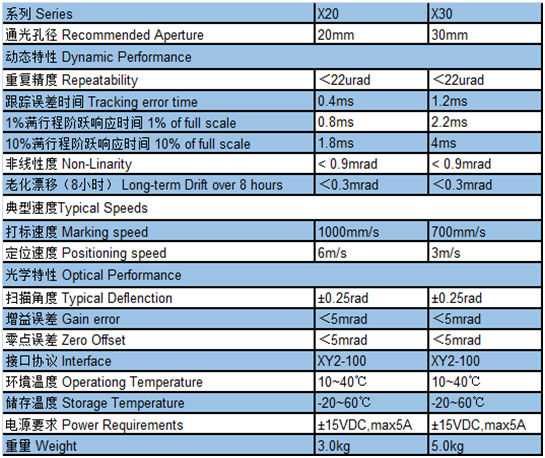

Parameter list:
