High Power Auto Focus Laser Cutting Head for 6KW Fiber Source Raytools BM115

BM115 Auto Focus Laser Cutting Head

Laser power rating 8KW; Standard auto focus laser cutting head.

Availability:
Quantity:
Inquire Add to Basket

  • BM115

  • Raytools

Product Description

Auto focus Fiber laser cutting head Raytools BM115 for 6kw laser source

Laser power rating 6 KW; Standard auto focus laser cutting head.


Raytools BM115 Main Features:

  • Integrated design to ensure sealing.

  • Both collimation and focus lens are water cooled.

  • Compact structure to reduce the payload of Z axis.

  • Air cooling to nozzle which effectively protects the nozzle & ceramic part and extends the lifespan.

  • 35mm Clear aperture which effectively reduces stray beam interference and guarantee cutting quality and lifespan.

  • Auto focus to reduce human intervention.

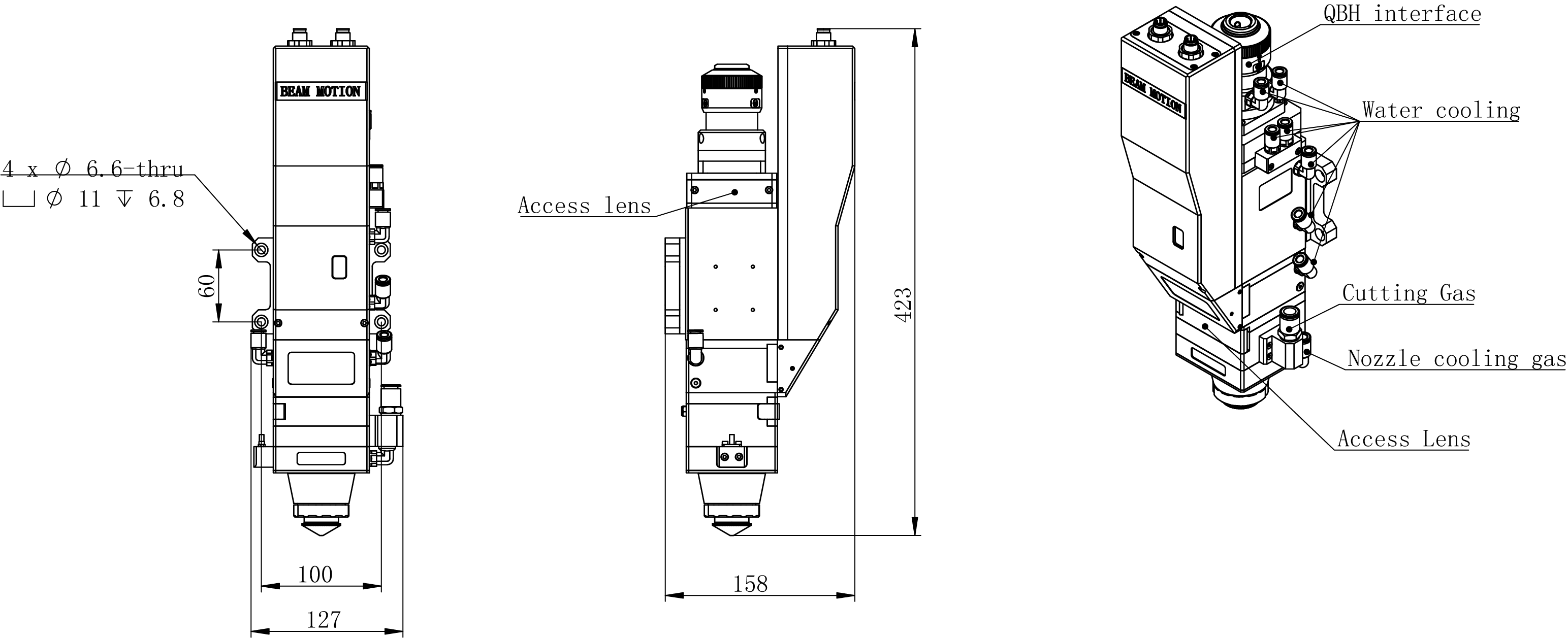

Raytools BM115 auto focus head conneting data:

Raytools BM115 auto focus head conneting data


Raytools BM115 Technical  Data:

Fiber Interface: QBH, QD, Q+ Collimation Length: 100mm
Clear Aperture: 35mm (6kw/8kw); 36.1mm (12kw) Focus Length: 150mm, 200mm
Auto Focus data +10~ -10mm (scale) Nozzle Styles: Single , Double , Custom
-Range: +22.5 ~ -22.5mm ( FL150 ); +40 ~ -40mm ( FL200 ) Diameter of Nozzle Single: 1.5/2.0mm, 2.5/3.0mm, 3.5/4.0mm, 5.0/6.0mm, 7.0/7.5mm, 8.0/8.5mm, 9.5/10.0mm
-Acceleration: ≤ 10m/s² Double: 1.0/1.2mm, 1.4/1.5mm, 1.6/1.8mm, 2.0/2.5mm, 3.0/3.5mm, 4.0/4.5mm, 5.0/6.0mm
-Velocity: ≤ 15m/min Assist Gas Pressure: ≤ 30 bar
-Accuracy: ≤ 50μm Weight: ~ 7 kg
Cover Glasses Data


- Collimation Side (Top) Φ38.1*1.6mm

- Focusing Side (Bottom/Middle) Φ37*7mm



Raytools BM115 auto focus laser cutting head is composed of standard accessories as  shown below:

Auto focus Fiber laser cutting head Raytools BM115 for 6kw laser source cables


Auto focus Fiber laser cutting head Raytools BM115 for 6kw laser source packaging
