It has the characteristics of high average power, high single-pulse energy, square or circular homogenized spot output, easy use and maintenance, etc. It is an ideal choice for industrial applications such as mold surface treatment, automobile manufacturing, shipbuilding, petrochemical industry, and rubber tire manufacturing.
Availability: | |
---|---|
Quantity: | |
RFL-P1000
Raycus
Raycus High Power Pulsed Fiber Laser Sources RFL-P1000 for Rust removal on metal surface
It has the characteristics of high average power, high single-pulse energy, square or circular homogenized spot output, easy use and maintenance, etc. It is an ideal choice for industrial applications such as mold surface treatment, automobile manufacturing, shipbuilding, petrochemical industry, and rubber tire manufacturing.
Features:
Universal control interface, strong compatibility
The working frequency is adjustable
High single pulse energy
High beam homogenization

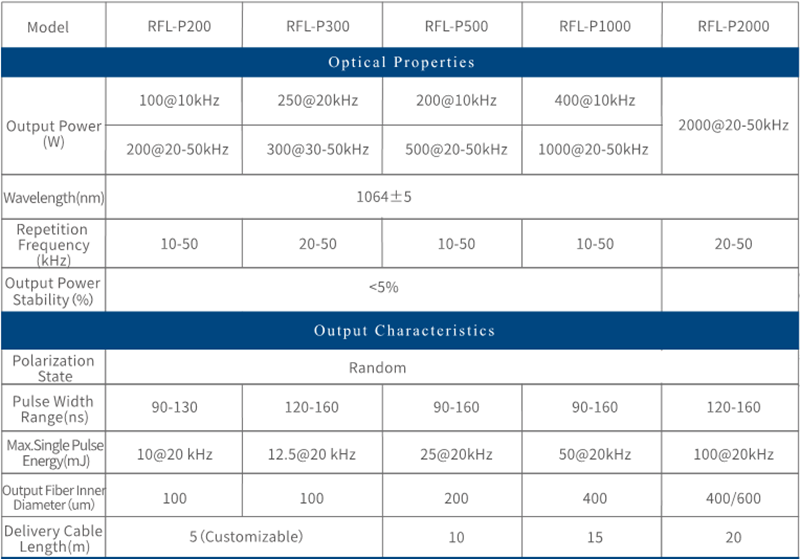

Optical characteristics:
Rated output power: (W):400@10kHz,1000@20-50kHz
Center wavelength: (nm): 1064±5
Repetition frequency range (kHz): 10-50
Output power stability: <5%
Output characteristics:
Pulse width range (ns): 90-160
Maximum single pulse energy (mJ): 50@20kHz
Polarization State: Random
Output fiber length (m): 15(can be customized)
Output core diameter (μm): 400

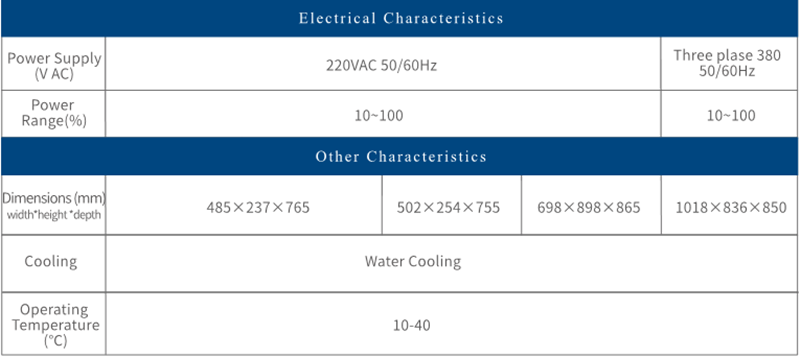

Electronic control characteristics:
Input power ( VAC ): 220,50/60Hz
Power adjustment range ( % ): 10-100
Other features:

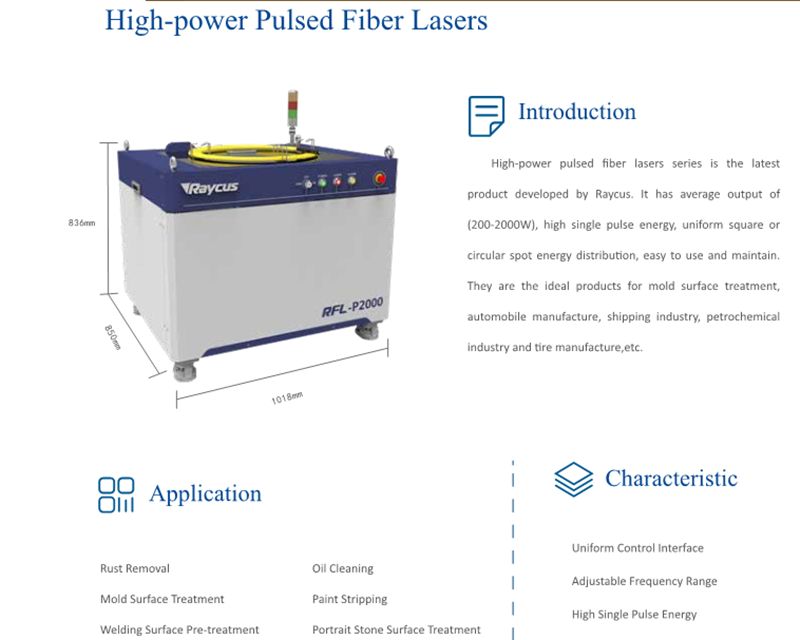

Dimensions ( mm ) W*H*D: 698×898×865
Cooling method: water cooling
Working temperature ( ℃ ): 10 - 40

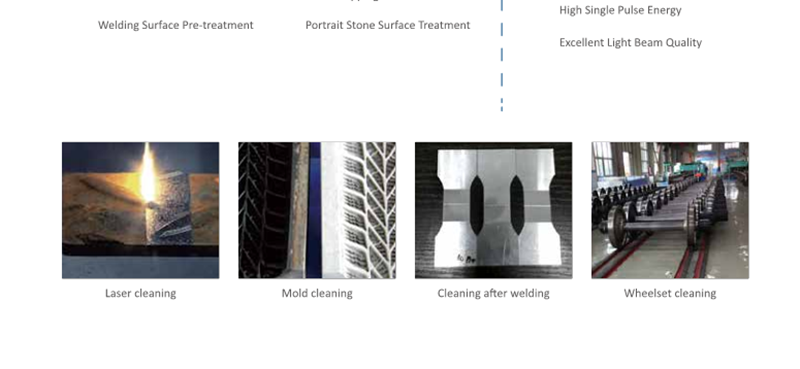

Application of RFL-P1000:
Rust removal on metal surface
Oil and dirt cleaning
Mold surface cleaning
Item surface paint removal, stripping
Removal of attachments on the surface of stone statues
Welding surface, spray surface pretreatment
