WSX 25D30 swing fiber laser cutting head with auto focus and anti-collision function for fiber laser cutting machine
PRODUCT FEATURES:
Using DD Motor to ensure stable and accurate long-term Operation.
Widely used to various three-dimensional processing application.
Fit for various laser sources
Anti-collision function
Max laser power ≤3000W

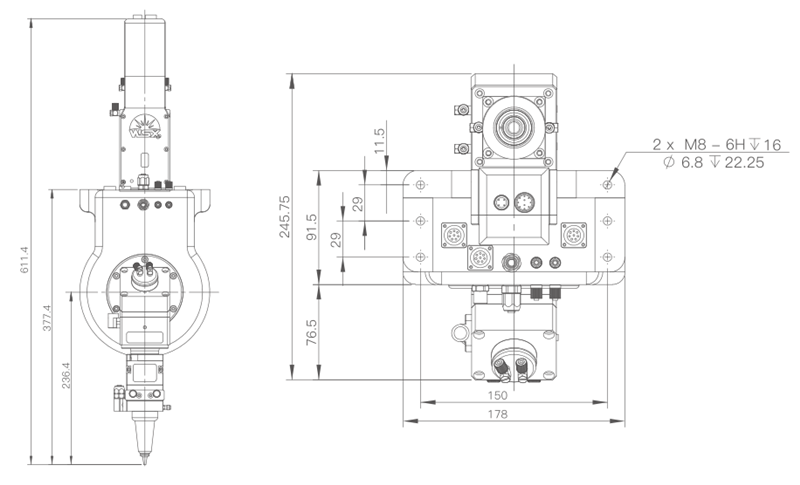

PRODUCT SIZE:
PRODUCT FEATURES:
Max Gas Pressure:25Bar
Horizontal Adjustment Rang:±1.5mm
Vertical Adjustment Range:±10mm
Effective Aperture:25mm
Collimating Focal length:100mm
Gross weight:15kg
Focusing Focal Length:125mm/150mm
Range of Rotation Axis2:±135°
Standard speed:80r/min
Position accuracy:<20arc sec
