Raycus Fiber Laser is the first Chinese enterprise engaged in the research, development and scale production of high-power fiber lasers and core devices and the largest fiber laser R&D and production base with global influence in China.
Welding version of continuous fiber laser RFL-C2000H
It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection capability. At the same time, it introduces an optimized second-generation optical fiber transmission system, which has obvious advantages over other lasers of the same type in the market.
Main Features:
High electro-optical conversion efficiency
Excellent beam quality
High reliability
High power stability
High modulation frequency
High electro-optical conversion efficiency
Optical properties
Rated output power: (W): 2000
Center wavelength: (nm): 1080±5
Modulation frequency: (Hz): 1-5000
Output power stability: ±1.5%
Red light indicates output power (mW): 0.5-1
Polarization Direction: Random
Output characteristics
Output connector: IQB
BPP: <1.5
Half-angle divergence angle (rad): ≤0.06
Output cable length (m): 10
Fiber core diameter (μm): 50 (100, 200 optional)
Electrical characteristics：
Working voltage ( VAC ): 220±10%, 50/60Hz
Control mode: RS232/AD/Etherne
Power adjustment range ( % ): 10-100
Other features:
Dimensions (mm) W*H*D: 410*405*150 (including handle)
Weight (kg): <70
Cooling method: water cooling
Working temperature ( ℃ ): 10 - 40

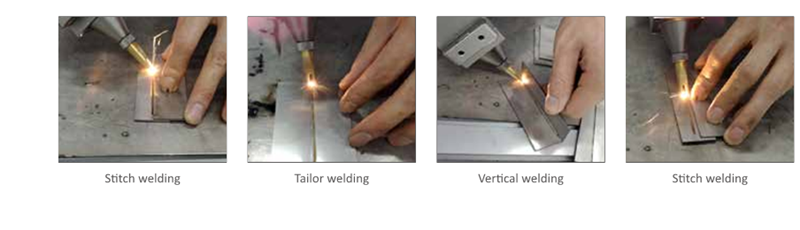

Applications:
Package accessoriesare：
Please refer to package accessoriesare in the packing box.
Unpacking and Inspection：
Raycus fiber laser is delivered in a package, which is designed to offer the maximal safety. Upon the delivery, please inspect all packaging for evidence of mishandling or damage. If you find any evidence of mishandling, please keep the damaged material and contact the shipping agent and Raycus immediately.
Please double check if each listed contents is inside the package; and contact Raycus as soon as possible if there is any issue.
Take extra care when removing the unit from the package to make the fiber optic cable stay away from collision and vibration. Please do NOT distort, bend or pull the output cable when unpacking the device; and avoid any collision to the head of laser output.

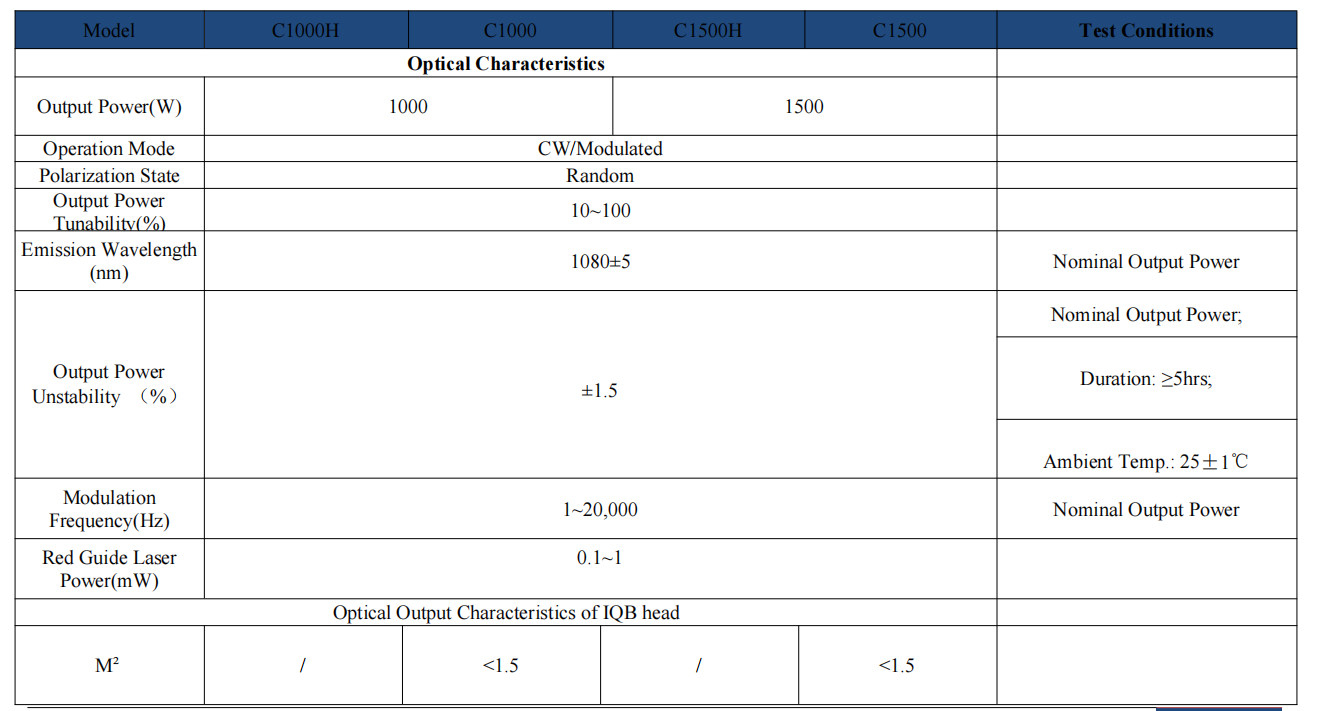

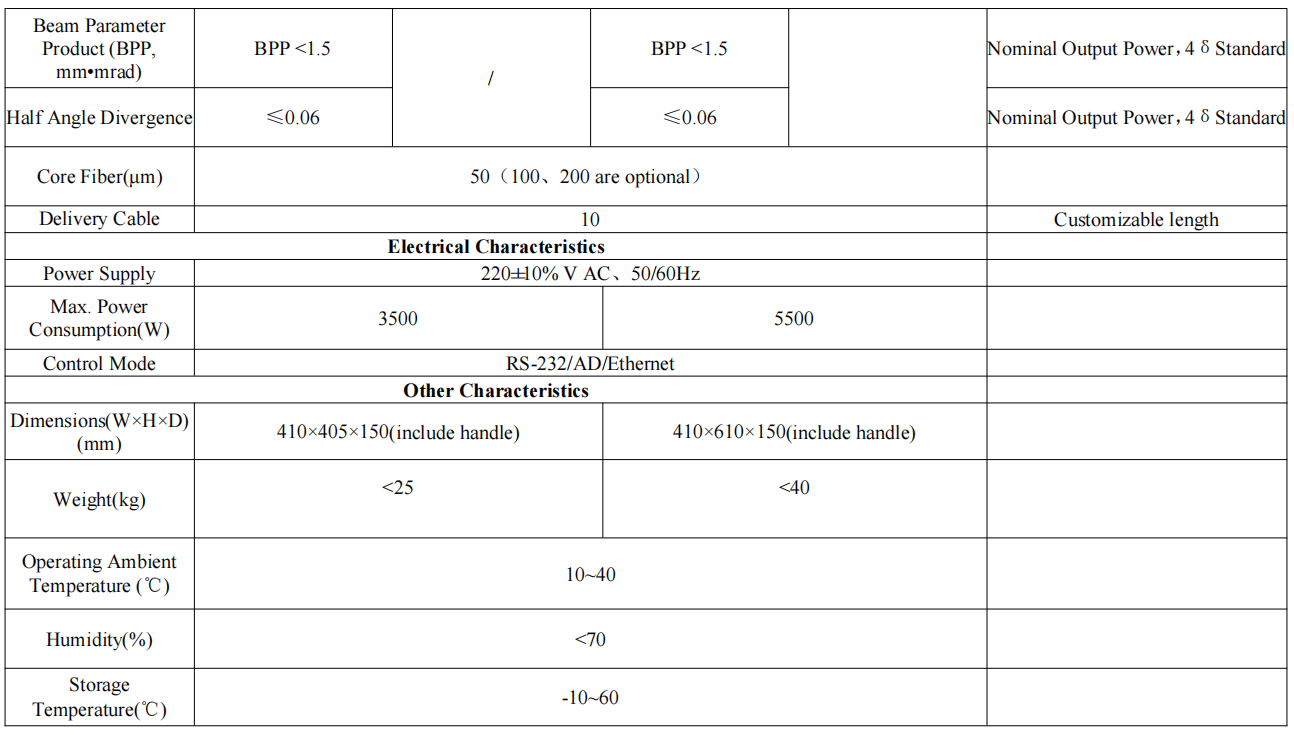

Specifications:
