RFL-C750
Raycus
Raycus RFL-C750 fiber laser source 750w fiber laser source CW Fiber Laser Sources
Raycus CW Fiber Laser 500-20000W Cutting Parameters.pdf
It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmission system to ensure a more stable and precise cutting effect in thick plate cutting. . This product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut sheet has a narrow slit and a bright section, which has obvious advantages over other lasers of the same type in the market.
Technical advantages:
High electro-optical conversion efficiency
Output fiber length can be customized
QBH connector
Maintenance-free operation
Wide modulation frequency range
Anti-high anti-reaction ability
Efficient thin plate cutting

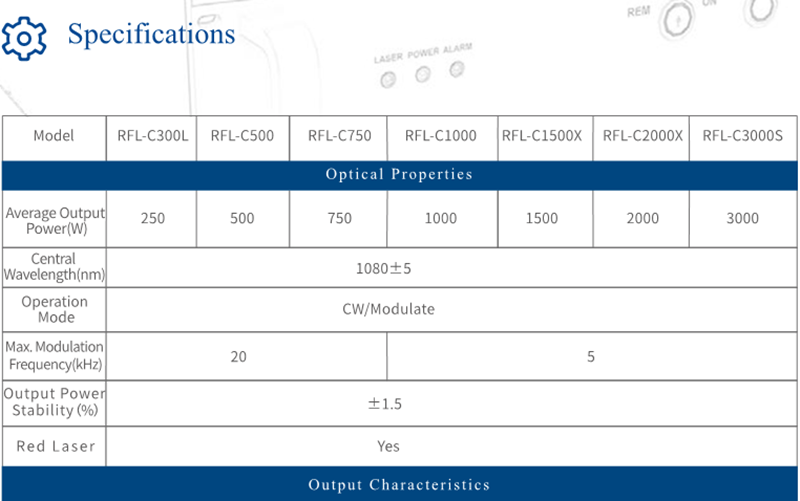

Optical properties:
Average output power: (W): 750
Center wavelength: (nm): 1080±5
Maximum modulation frequency: (kHz): 20
Output power stability: ±1.5%
Red light: yes

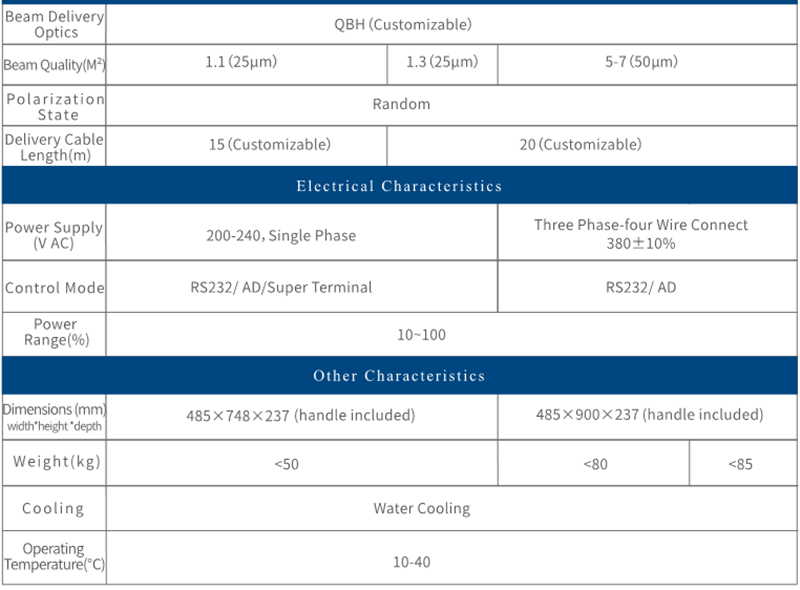

Output characteristics:
Output connector: QBH (customizable) beam quality
M²: 1.1 (25μm)
Polarization State: Random
Output fiber length (m): 15 (can be customized)
Electronic control features:
Input power ( VAC ): 200-240, single phase
Control Mode: External RS232, External AD, HyperTerminal
Power adjustment range ( % ): 10-100
Other features:
Dimensions ( mm ) W*H*D: 485*748*237 (including handle)
Weight (kg): <50
Cooling method: water cooling
Working temperature ( ℃ ): 10 - 40
Application of RFL-C750:
Precision cutting metal welding sheet punching metal scribing surface treatment 3D printing, rapid prototyping
